Xtension Limit Switch

Product Description

CopperPour™

Xtension Limit Switch Kit

Achieve precise 0,0,0 homing positions, define operational boundaries, and implement security interlocks to prevent overtravel and protect your system.

Enjoy a straightforward, plug-and-play installation with the integrated Xtension Connector, designed for seamless compatibility within the OpenBuilds ecosystem.

Includes:

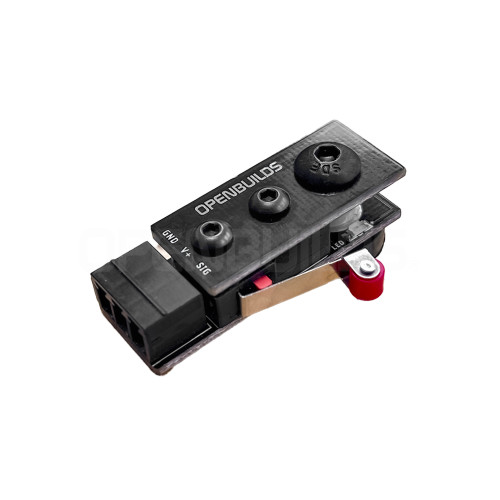

Xtension Limit Switch

(Fully Assembled)

Mounting Hardware

Features:

Key Features:

Onboard Noise Filtering RC Filter to prevent false triggers

Roller Style Lever

Onboard Xtension 3 Pin connector

LED indicator that provides immediate visual feedback upon activation

Installs at any location on V-Slot and C-Beam Linear Rails

Compatibility:

Compatible with BlackBox Motion Control System X32

Compatible with Xtension Wire By the Foot 3 Conductor

Compatible with Xtension Wire Set (Pre-Cut) 3 Conductor

Used in all OpenBuilds Machines

Specifications:

Side-by-Side Image Popup

Specifications:

Input Voltage: 5-24V

Configuration: Normally Open

Dimensions: 43mm x 15.3mm x 10mm

Onboard Female Xtension Connector

Color: Black with Red LED and Red Roller Switch Lever

3D Models & Resources:

3D Models & Resources

Assembly Video Example

Community collaboration and support

Design Information:

This design or build includes CopperPour, LLC design work(s) shared Open Source under the CC BY-NC-SA 4.0 License Terms and Conditions.
